TRESSA

A cart made up of jute composite

ABOUT TRESSA PROJECT -

The project focuses on bringing the change to the present electric rickshaw ( called toto ) in terms of safety, aesthetics and ergonomics.

Vehicle tressa is first in its own kind where it uses jute composite for body panels and seat structure. The execution of each and every stage was done after thorough analysis using software and workers experience.

WHY ?

- Safety

- Different body types

- Energy efficient pushing it

   to extra mile

Toto ( e-rickshaw )

somewhere in Kolkata

PROJECT CLARIFICATION AND CAD ANALYSIS -

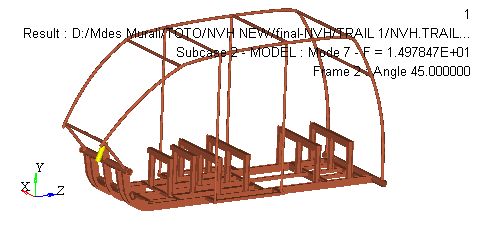

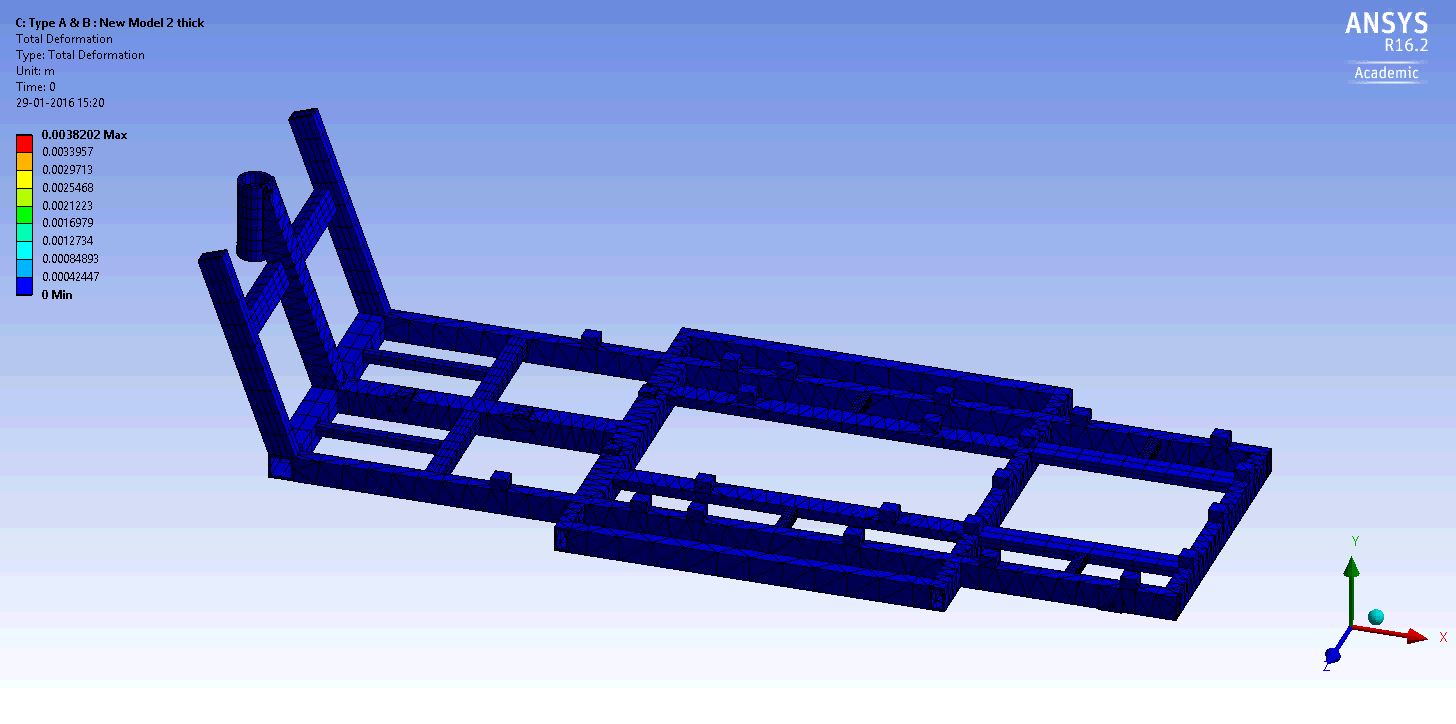

The scope of the project was defined keeping time in mind. The 1:1 prototype was made after the approval of CAD. The analysis was done in LS- Dyna and ansys by the technical team involved in the team.

DELIVERABLE FOR SIX MONTHS

-MODIFIED CHASSIS

-MODIFIED SEATS

-JUTE COMPOSITE STRUCTURE

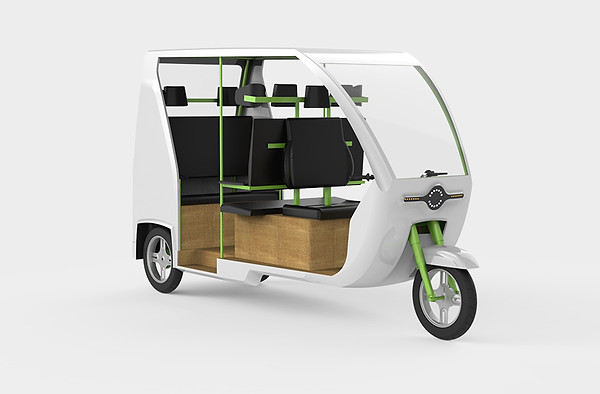

KEYSHOT RENDER

WITH SURFACE MODEL

MODELLED BY

G. PRASAD

ALIAS SURFACE MODELLER

MATERIAL PROCUREMENT AND PROTOTYPING -

New toto is bought out and then dis-assembled to change the chassis. Change in chassis is required to bring the safety aspect and the ergonomic fit as per Indian anthropometric data. Video showing the step by step completion of each phase. Mr. A Raja ( a welding expert ) help us fabricating the new chassis with 5mm of tolerance.

MODIFICATION OF CHASSIS

PROCESS PICS

Chassis

Completed

PREPARATION OF JUTE COMPOSITE STRUCTURE

PROCESS PICS

Fixing the jute composite with modified chassis

FIXING THE SEATS OVER THE STRUCTURE

INTERACTION WITH PEOPLE

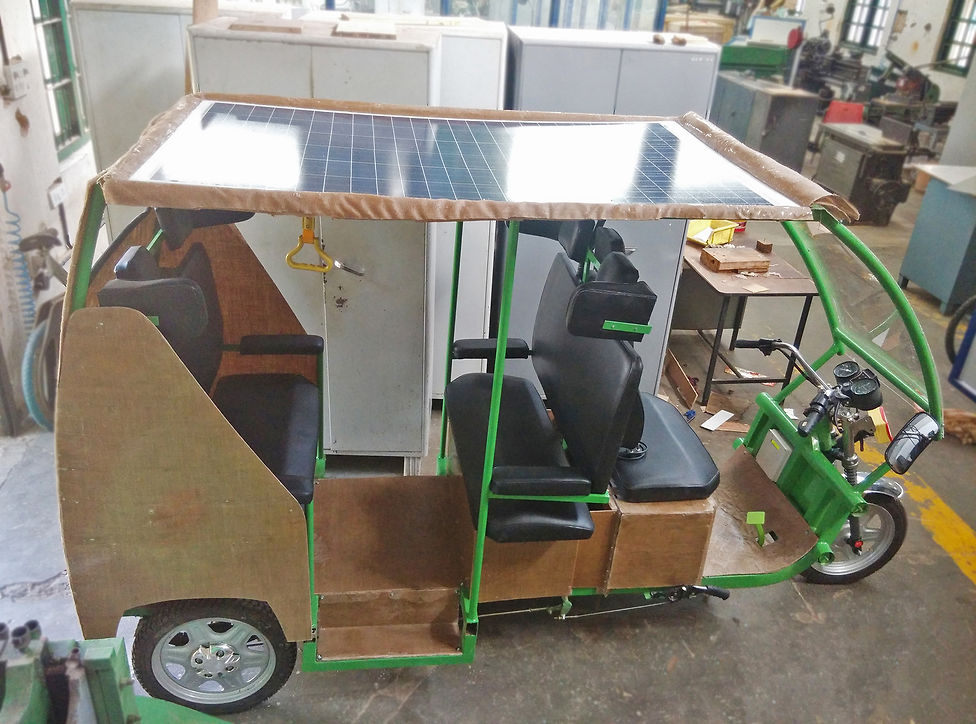

FINALLY ........ AFTER THE SIX MONTHS OF SOURCING, FABRICATION AND HARD-WORK
